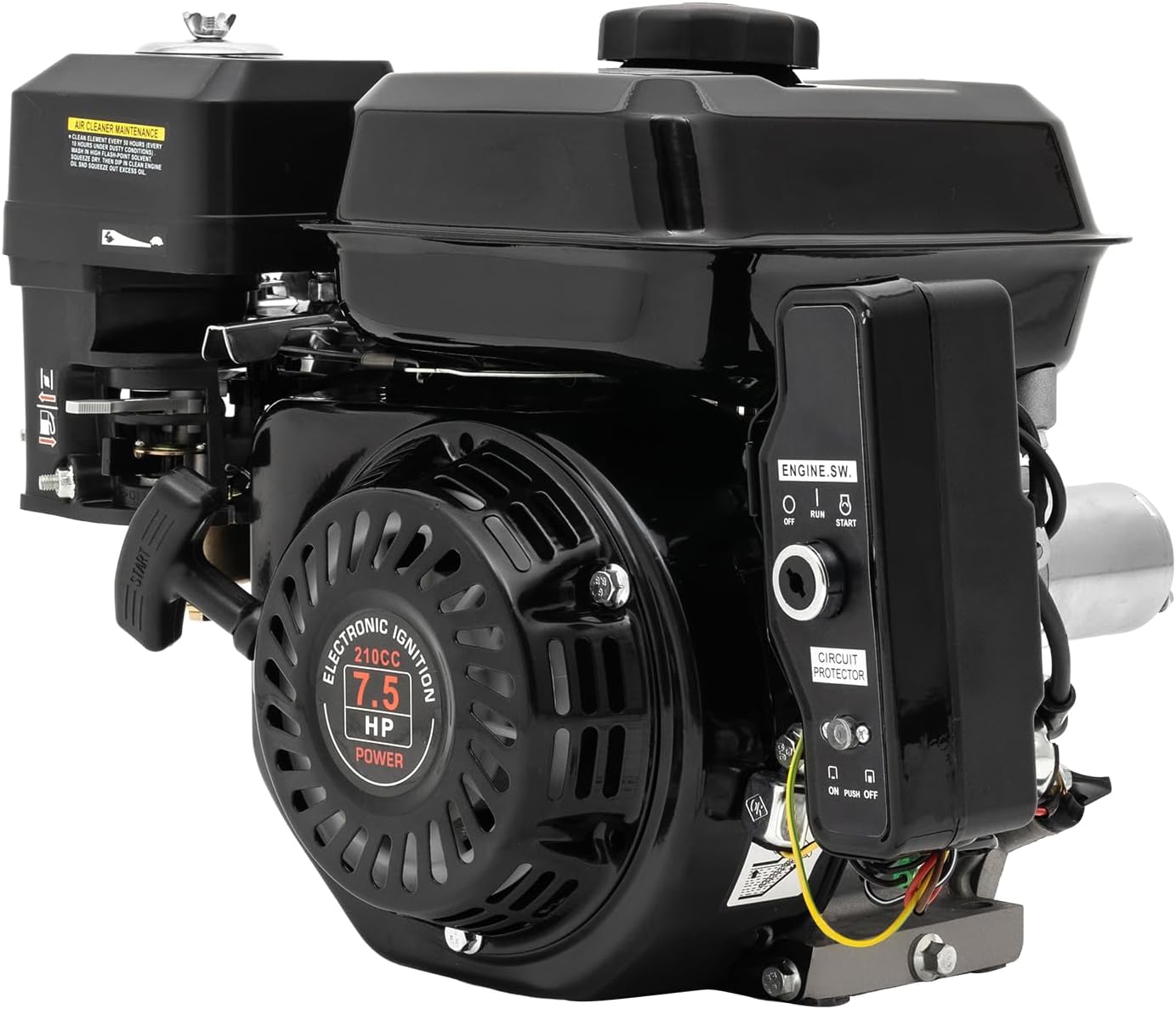

7.5HP Electric Start Horizontal Engine
This 212CC 4-Stroke OHV Gasoline Engine is ideal for go-karts, compressors, trenchers, generators, high-pressure washers, and cement mixers.
Key Features

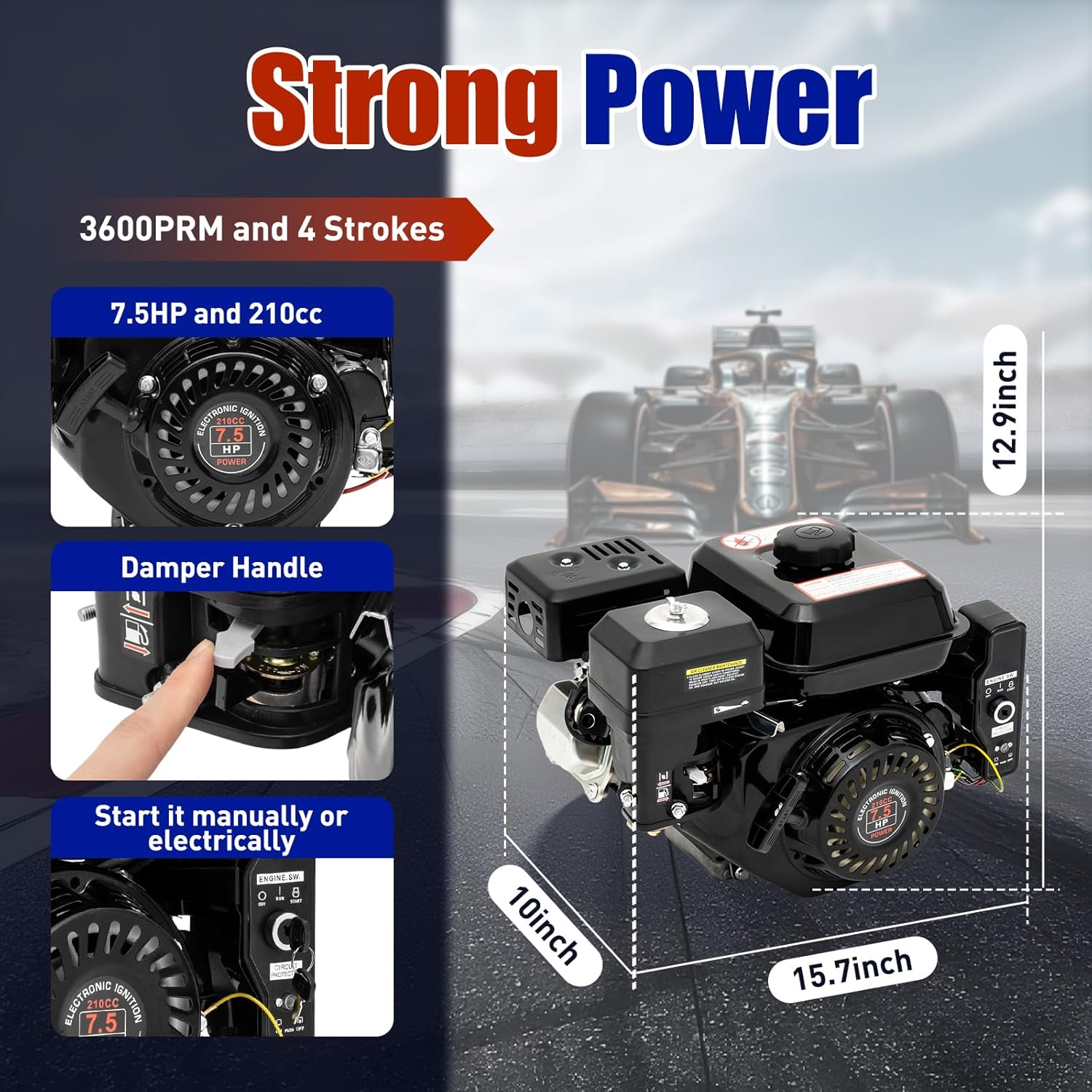

- Strong Power: 7.5HP, 212cc displacement, 3600RPM for efficient performance.

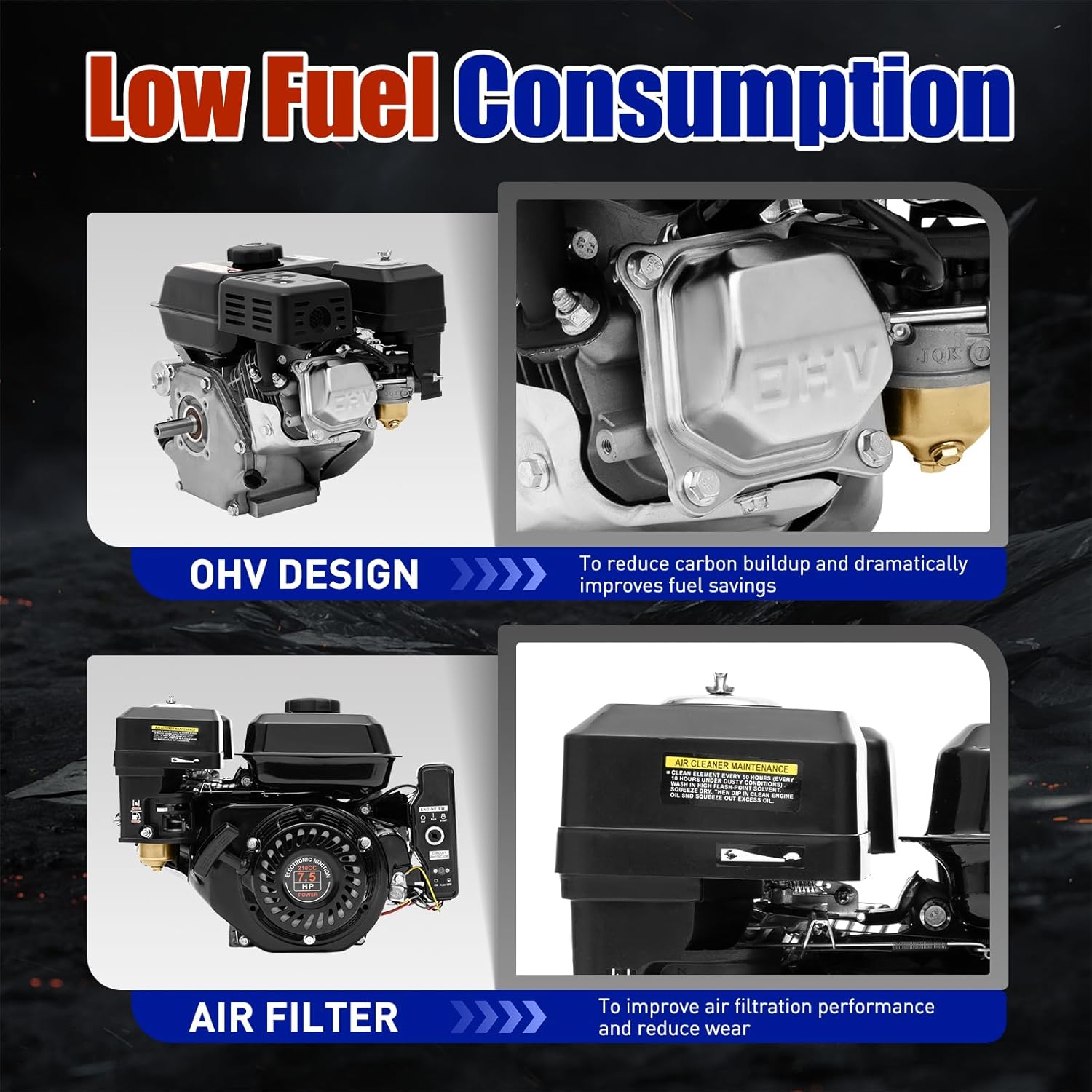

- Low Fuel Consumption: Overhead valve design and air filter improve fuel efficiency and reduce wear.

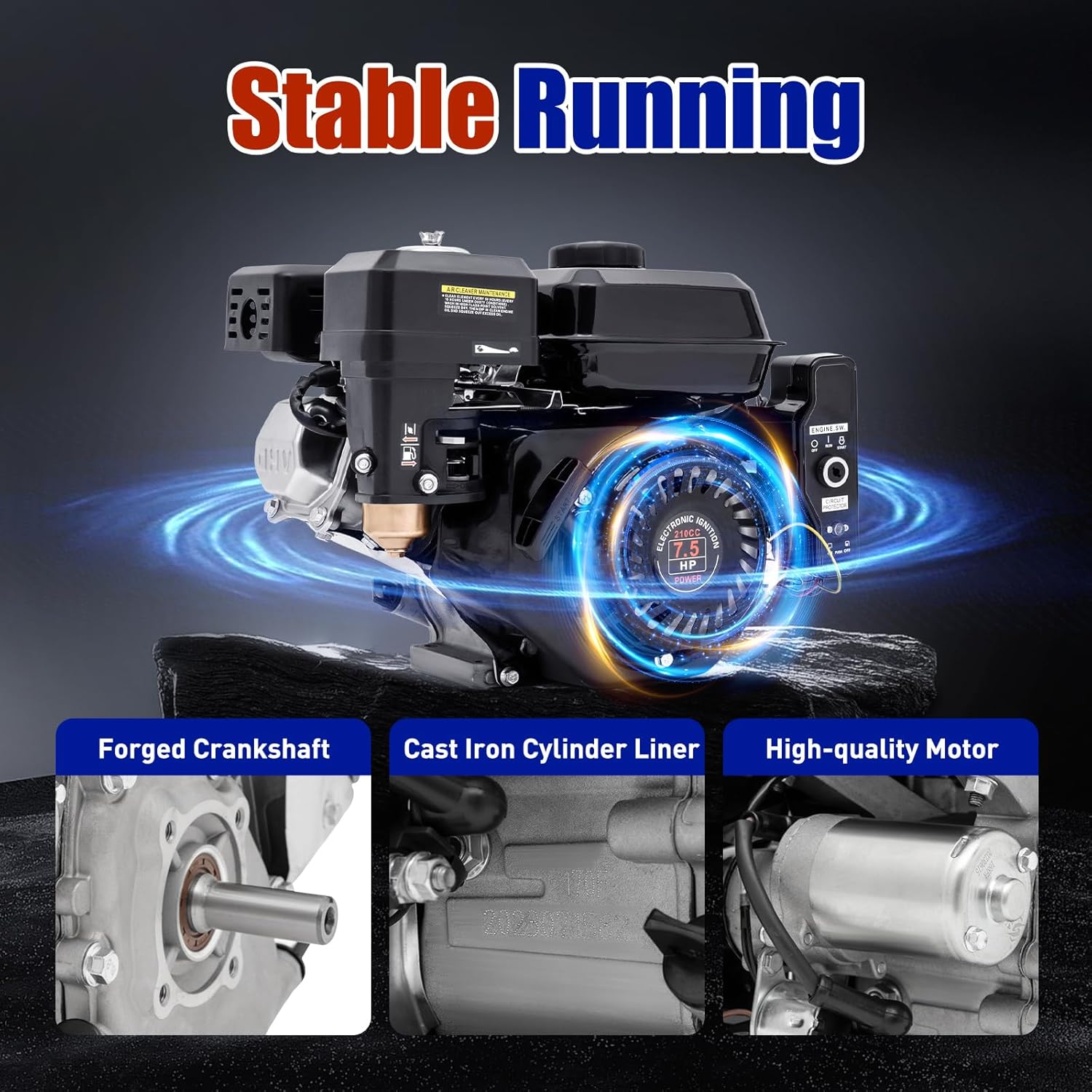

- Stable Running: Equipped with metal cam, forged crankshaft, and cast iron cylinder liner for durability.
- Efficient Cooling System: Built-in forced air cooling and ventilated heat sink maintain optimal temperature.
- Low Noise: Silencer ensures a quieter working environment.
- Large Fuel Tank: 0.95-gallon capacity for extended operation without frequent refills.
Specifications
- Type: Single Cylinder, 4-stroke
- Color: Black
- Material: Aluminium, Iron
- Maximum Torque: 10.8N-m
- Bore Stroke: 70 * 45mm (2.75 * 1.77 inch)
- Crankshaft Diameter: 20mm (0.78 inch)
- Crankshaft Length: 50mm (1.96 inch)
- Lubrication Oil Capacity: 0.6L (0.15 Gallon)
- Fuel Tank Capacity: 3.6L (0.95 Gallons)
- Fuel Consumption Rate: 360g/kW.h
- Starter System: Hand Start or Electric
- Net Weight: 14.55kg (32lbs)
- Product Size: 40 * 25.5 * 33cm (15.7 * 10 * 12.9 inch)
Package Includes
- 1 Gasoline Engine
- 1 English Manual
- 2 Keys
- Accessories for Assembly
Additional Features
- Comfortable T-shaped start handle for easy operation.
- Oil alarm feature prevents engine damage by shutting off when oil is low.
- Adjustable speed lever for various applications.
- Durable nylon pulling wire.
Note
- Shaft diameter: 20mm/0.79in, not suitable for 3/4-inch requirements.
- Professional installation recommended.
